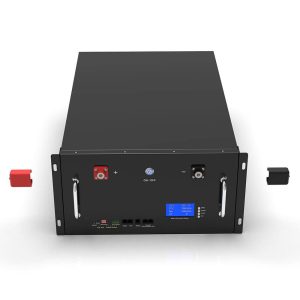

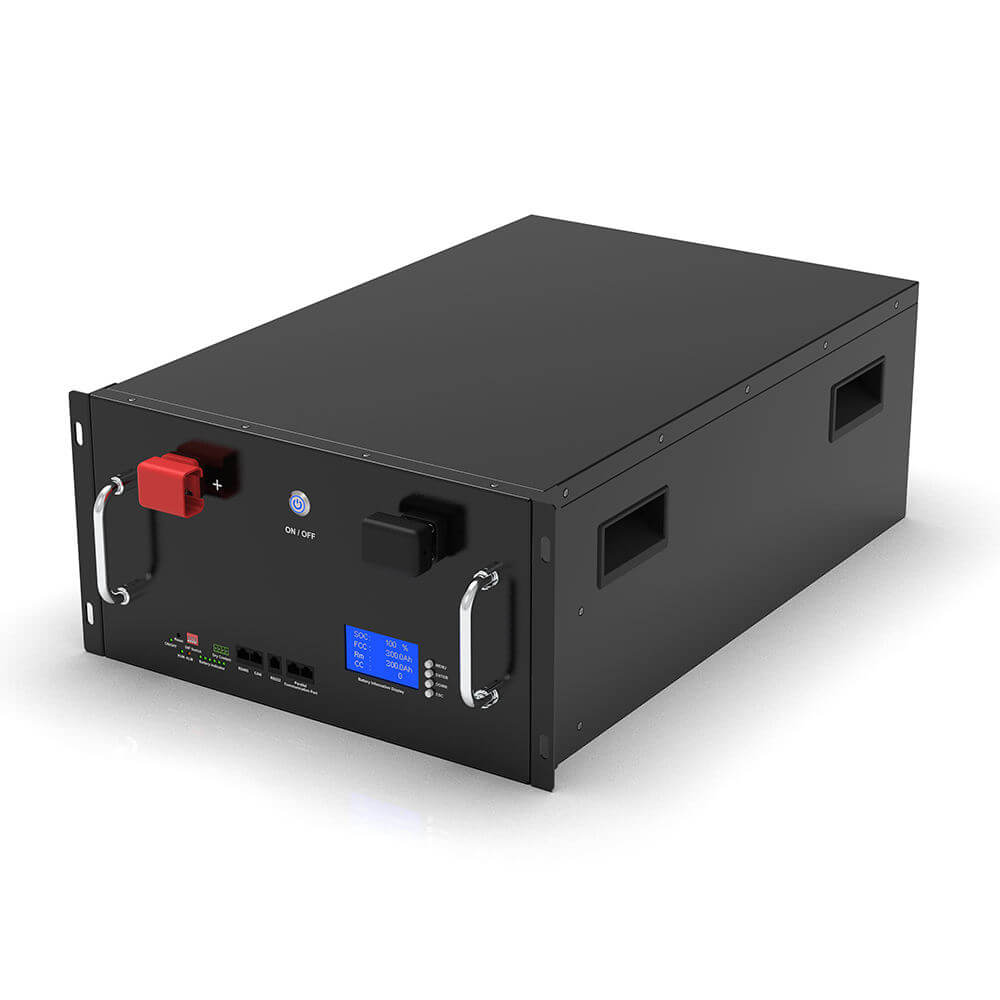

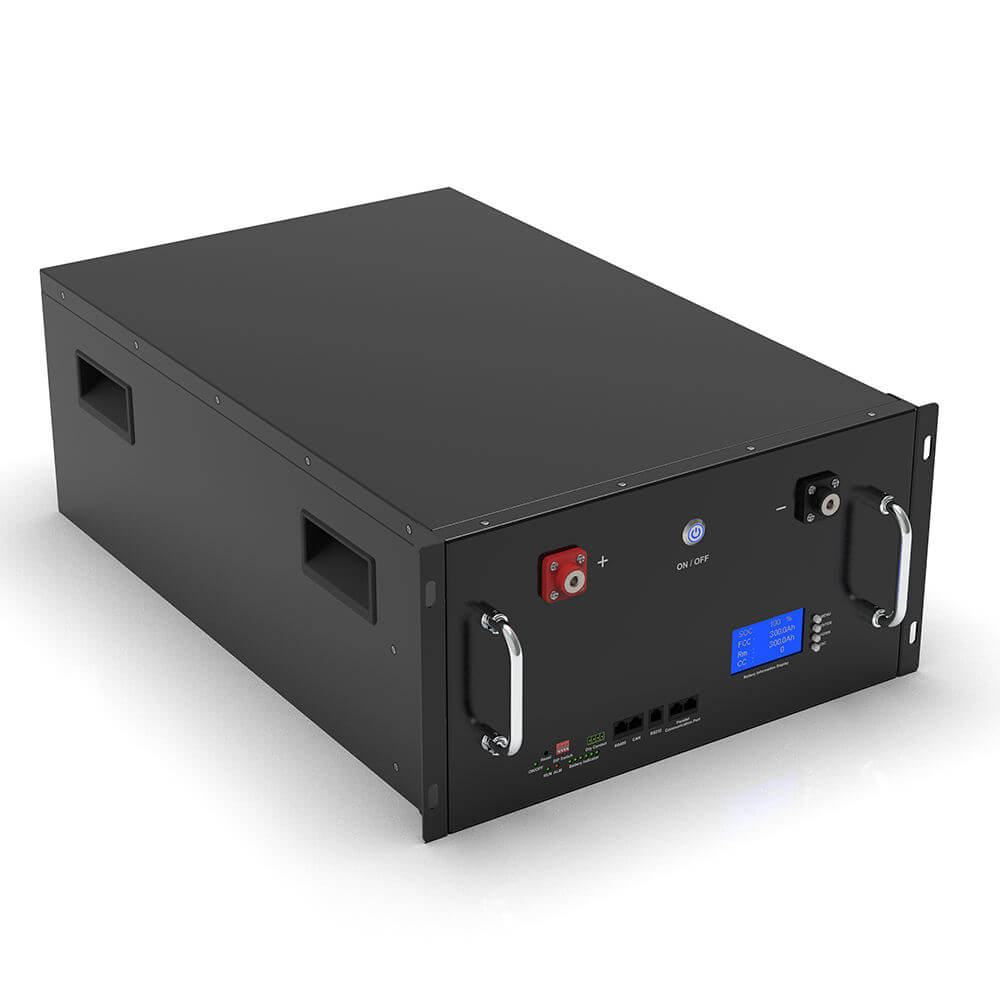

Solar Rack Mounted LiFePO4 Batteries 48V 280AH

2026-03-02 01:51

Solar Rack Mounted LiFePO4 Batteries 48V 280AH
Barang	Spesifikasi		Catatan
Baterai	Tegangan Nominal:	51.2V	Support Customized 6.4V-96V
	Kapasitas Nominal:	280AH	Any capacity can be customized
	End of Discharge Voltage:	58.4V
	End of charge Voltage:	38.4V
	Max.Cont. Charge Current:	≤100A	Free Customization Service
	End of Charge Current:	100mA	Free Customization Service
	Nominal Discharge Current:	100A(Safe)	Free Customization Service
	Max. Pulse Discharge Current:	200A(3S)	Free Customization Service
	Internal Resistance:	≤50mΩ
	Operating Charge Temperature:	0 ～ 45 ℃
	Operating Discharge Temperature:	-20 ～ 60 ℃
	Storage Temp.(60-80% SOC Storage):	-10～45℃
	Metode Pengisian:	CC / CV
	BMS:	Built in BMS	Support Customized Extra Function
	Dimensi:	640*500*240mm（L*W*H）
	Berat:	≈95KG
	Siklus Hidup:	6000+	(Cycle @RT, 1C rate)
Battery Cell Used	Prismatic LiFePO4 Cell/ Pouch LiFePO4 Cell	3.2V 280AH	16S1P

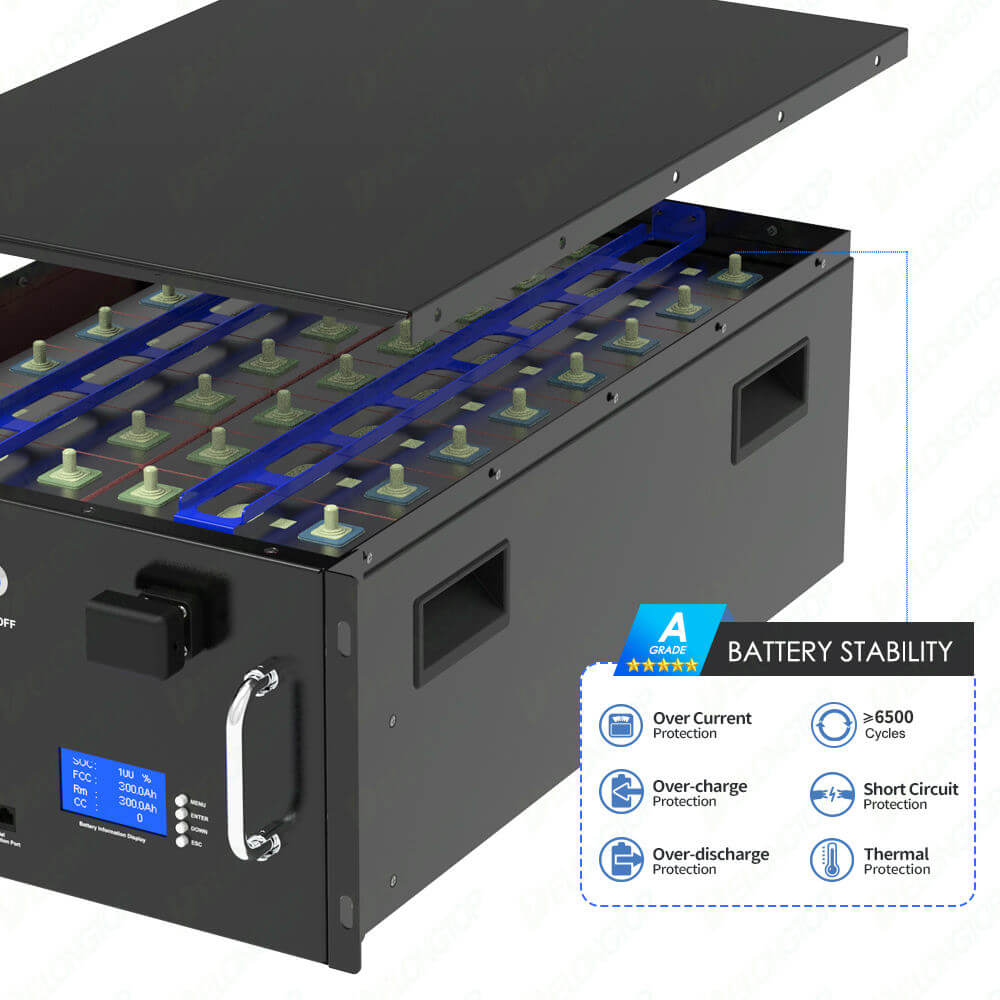

BMS	Charge Protection, Over charge Protection, Over Discharge Protection, Short Circuit Protection		Support Customized Extra Function
Lampu indikator	/	/
Tempat baterai	Kasus Logam	/
	IP Grade:	IP56

Product Characteristics

* High performance traction - Especially for mobile or stationary use with the highest requirements
* LiFePO4 280Ah lithium battery replaces a 400Ah lead battery - Thanks to maximum usable capacity
* Safest lithium (LiFePO4) technology - Lithium-iron-phosphate, no gas, no danger of explosion or fire. No need maintenance
* Long service life - Maximum service life with more than 3500 cycles up to 8000 cycles, even with regular deep discharge
* High discharge current - High discharge performance without voltage drop for large consumers such as coffee machines and air
conditioning systems
* Light weight - Up to 70% weight savings compared to lead-acid batteries
* Low automatic discharge - Stored/ unused, only about 3% per month

Focus on Solar Energy Storage System

Our wall-mounted LiFePO4 battery was specially developed for home solar energy storage system. The battery used the lightest cell and can be mounted on the wall with a battery holder.

48V 150AH LiFePO4 Battery supply the enough power to the home applications , and our battery meet the standard of most inverter and MPPT controller. If you are not sure, you can tell us the information of the inverter and controller you are using and we will custom the right battery to you.



BMS（Battery Management System）

It is an electronic system allowing the control and the charge of the different elements of a storage battery. The BMS built into each battery ensures that the battery is protected from improper handling. It switches the battery in case of under voltage or overload, and turns on automatically as soon as the problem is fixed.* Protection of the cell against under voltage by cutting the
load over time.
* Protection of the cell against over voltages by reducing the charging current or by stopping the charging process.
* System shutdown in case of overheating.
* Battery charging is stopped at low temperature.



SUPPORT ALL IN ONE SMART COMMUNICATION FUNCTION

Our BMS is a complete set of communication functions, supporting RS485, RS232 and CAN-BUS communication protocols. We can also customize the communication content according to the confirmation which customers provide. Customers can through the host computer software to monitor the batteries, and check the working status of each cells and set specific parameters on the computer.



Perusahaan kita

WHAT BATTERY CELL WE USE

As a 12 year-old store engaged in the battery business, we are responsible for our customers and our brand.

Using only A grade cells, the cycle life can up to 6500-8000 times: 10AH/ 25AH/ 30AH/ 50AH/ 100AH/ 200AH...
1> Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.
2> Through a number of certification and testing, quality assurance.
3> There are two types of pouch cells and prismatic cells. The pouch cells: lighter, cheaper, and easy to customized in special sizes. The prismatic cells: not easily deformed , stable performance, mature market, more popular at present.

FAQ

Q1: Apa saja yang termasuk dalam baterai atau paket, bolehkah saya membeli pengisi daya dari Anda?

A1: Battery case, BMS, battery pack, can buy customized connector, charger

Q2: Berapa lama frekuensi mengisi ulang baterai?
A2: Biasanya per 2 bulan untuk mengisi ulang baterai, untuk mengisi penuh baterai tergantung pada arus pengisi daya yang Anda gunakan. Pengisi daya 20A dapat mengisi penuh baterai 12V 100Ah dalam 5 jam, pengisi daya cepat 50A dalam 2 jam.

Q3: Berapa waktu tunggu sampel, dan pengiriman pesanan massal. Berapa lama saya bisa mendapatkannya?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payment, bulk in 10-25 days depends on the quantity
Pengiriman: pesanan sampel atau paket baterai kecil, kami dapat mengirim dengan pos kilat melalui Fedex, UPS, TNT dll. Jika seluruh paket lebih dari 50KG, dapat dikirim melalui udara atau laut, pengiriman laut lebih murah. Pelanggan dapat memberi tahu nama bandara terdekat dan nama pelabuhan laut kepada staf penjualan untuk memeriksa opsi terbaik untuk Anda.

Q4. Apa garansi Anda?
A4: We offer 10 years warranty for all our battery pack for different situation. We ensure at least 3500 cycle life for the
LiFePO4 battery pack, which means you can use it for at least 10 years for normal 1 time charge and discharge everyday.

Q5: Dapatkah saya menyesuaikan ukuran baterai?
A5: Of course yes if your quantity MOQ workable.

Q6. Bisakah kita memasang sendiri baterai LiFePO4 yang berbeda secara paralel atau seri?
A6: Ya. Baterai dapat dipasang secara paralel atau seri oleh pelanggan. Namun ada beberapa tips yang perlu kita perhatikan;
1> Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2> Jangan meletakkan baterai yang sudah habis dan baterai yang tidak diisi secara paralel. Ini dapat mengurangi kapasitas seluruh unit baterai.
3> Beri tahu kami kapasitas target dari seluruh paket jika Anda ingin menempatkannya secara seri. Kami akan memilih BMS yang cocok untuk setiap baterai.
4> Jika Anda tidak profesional dalam baterai paralel dan seri, jangan menangani baterai sendiri. Ini dapat menyebabkan bahaya dan merusak masa pakai baterai.

Q7. Bisakah kita menggunakannya untuk mesin mobil?
A7: Ya, baterai kami termasuk BMS, Anda dapat menggunakannya hanya untuk mobil berkecepatan rendah atau aux. tenaga untuk mobil standar. Jangan langsung menggunakannya untuk mobil standar, karena akan memerlukan desain BMS yang lebih rumit untuk kemasannya.
