Paket Baterai Lithium Lifepo4 Surya Isi Ulang Penyimpanan Terpasang Di Dinding Daya Hibrid Rumah Grosir 48V 100ah 200ah

2023-08-18 06:01

Spesifikasi

model nomor	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
Tegangan	48/51.2V	48/51.2V	48/51.2V
Kapasitas	100Ah	150Ah	200Ah
Energi	5.12kwh	7.68kwh	10.24kwh

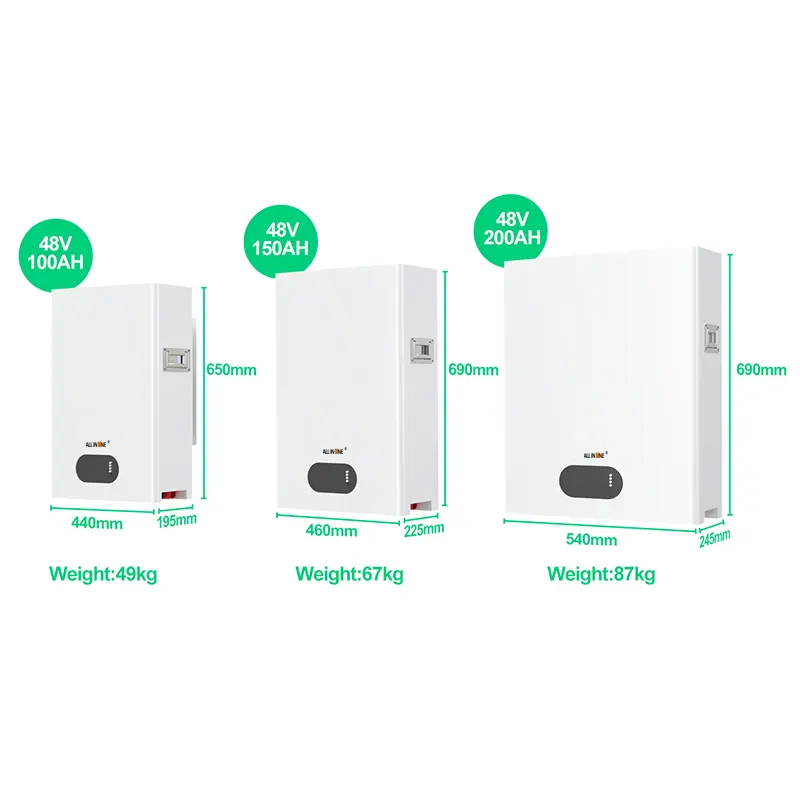

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Bobot	49kg	67kg	87kg
Parameter Dasar
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Suhu Operasi	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Suhu Penyimpanan	0 °C hingga 45 °C @60+/-25% Kelembaban Relatif	0 °C hingga 45 °C @60+/-25% Kelembaban Relatif	0 °C hingga 45 °C @60+/-25% Kelembaban Relatif
Standar Baterai Lithium	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Kekuatan penuh	5120W	7680W	10240W

Pabrik kami

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

FAQ

T: Apakah Anda perusahaan dagang atau pabrikan?
A: We are ALL IN ONE original factory.

T: Dapatkah saya memiliki sampel untuk diuji? Dan apa lead time untuk pesanan sampel?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

T: Apakah Anda menyediakan layanan purna jual?
A: Ya, garansi 12 bulan, jika ada masalah kualitas di pihak kami dalam periode ini, kami dapat mengirim yang baru sebagai pengganti.

T: Apakah Anda menerima OEM / ODM?
A: Ya, itu tersedia.

T: Apakah Anda baterai kapasitas nyata?
A: Semua sel baterai kami dengan Grade A, 100% kapasitas baru dan nyata.

T: Sertifikat apa yang Anda miliki?
A: Kami dapat menyediakan CE, ROHS, FCC, IEC62133, MSDS, UN38.3 jika jumlah pesanan Anda besar.

T: Apakah Anda memiliki MOQ?
J: Tidak terbatas. Pesanan kecil juga diterima. Lebih banyak kuantitas memiliki harga yang lebih baik, kami akan memeriksa harga terbaik untuk Anda.

T: Apa jangka waktu pembayaran Anda?
A: Kami mengadopsi T / T, Paypal, cara pembayaran Alibaba dan sebagainya.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
