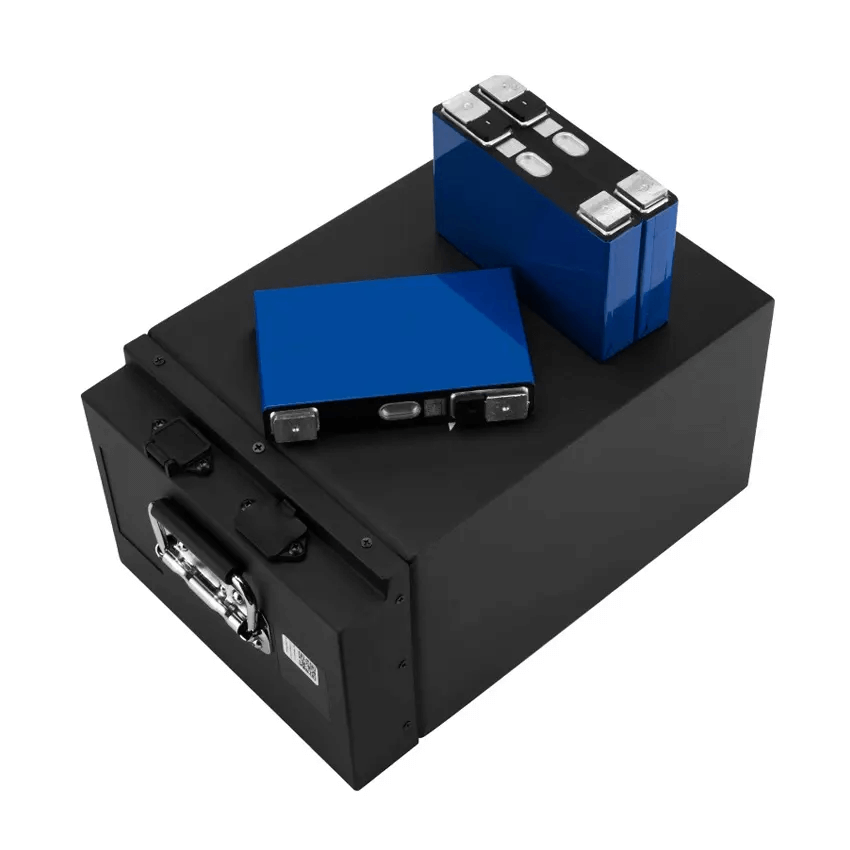

Baterai Kendaraan Listrik Paket Baterai 60v 40ah 50ah 65ah

2023-08-24 08:06

Spesifikasi

Parameter Fungsi
Nominal Battery Energy	3900wh
Nominal Kapasitas	65Ah
Nominal Tegangan	60V
Resistensi Internal	22mΩ
Siklus Hidup	>6000
Bulan Self Discharge	<3%
Mengisi Data
Tegangan Pengisian Normal DC	54,75 ± 1Vdc
Mode Pengisian	0.2C ke 54.75V, lalu 54.75V, isi arus ke 0.02C (CC/CV)
Direkomendasikan Pengisi Daya Saat Ini	50A
Diizinkan Maks. Mengisi Arus	50Adc
Isi Daya Cut-off Voltage	54,75 ± 1Vdc
Data Debit
Arus Debit Kontinyu	50A
Diizinkan Maks. debit arus	100A (opsi: 100Adc)
Rang dari tegangan pelepasan DC	37.5V-54.75Vdc
Situasi kerja
Mengisi Suhu	0℃ hingga 45℃ (32℉ hingga 113℉) @60±25% Kelembaban Relatif
Suhu Discharge	-20℃ hingga 60℃ (-4℉ hingga 140℉) @60±25% Kelembaban Relatif
Suhu Penyimpanan	0℃ hingga 40℃ (32℉ hingga 104℉) @60±25% Kelembaban Relatif
Tingkat Perlindungan Kandang	IP67

fitur

1.Rechargeable battery
2.Use of Iron(Fe) as a cathode material
3.Higher discharge current
4.Do not explode under extreme conditions and weight less

Keuntungan

1.Extremely high rate capability
2.Safe lithium battery
3.Good storage characteristics
4.Good high temp performance
5.Long cycle life to 2000 times
6.High capacity & light weight
7.Environmentally friendly
8.No memory effect

We can provide you with customized services

Customized 7.4V-12V-24V-36V-48V-52V-60V-72V...LITHIUM BATTERY PACK

The capacity and dimension can customize according to your request:

1.Customized battery size and shell material

2.Customized BMS charging and discharging current

3.Customized connect plug and socket, connector wire

AIN Aplikasi Utama Paket Baterai Lithium
Aplikasi penggerak listrik	baterai start mesin; Mobil Kecepatan Lambat; robot intelektual; sepeda listrik / sepeda motor / skuter; troli golf / gerobak / mobil tamasya; alat-alat listrik.
Penyimpanan energi	sistem tenaga surya dan angin; kota on / off grid; komunitas dan keluarga, RV Caravan, Marine yachts.
Sistem cadangan dan UPS	Telecommute base, CATV-system, computer server center, medical instrument, military equipment.
Aplikasi lain	keamanan dan elektronik; POS seluler, lampu pertambangan / obor / lampu LED / lampu darurat.

Perusahaan kita

WHY CHOOSE US?
1.Our company has 13 years experience in battery R&D,producing and the overseas marketing.
2.Flexible customizing and Manufacturing
3.6,000,000Ah monthly production capacity
4.Each process for making battery were under strict management and control,all of the battery were under full inspection before delivery.
5.With professional R&D team, experienced workers and advanced requirements, we are determined to provide you high-quality battery.

6.Support prompt shipment and sample quality products,track the cargo in time after delivery.More than one year Guarantee,we will give instruction for how to use our products.



FAQ

Q: What is your warranty?
A: We guarantee the quality before the item is shipped. The warranty will be offered based on different type of battery. Any damages caused by improper use are not covered by our warranty.

Q: What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.

Q: Are your factory or trading company?
A: We are professional lithium-ion rechargeable batteries manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients around globe.
