Spesifikasi
# | Barang | Parameter | Ucapan | ||
1 | Kapasitas nominal | 90Ah | (25±2)°C, Standard Charge And Discharge | ||
2 | Typical Voltage | 3.2V | |||
3 | AC Impedance Resistance(1KHz) | 0,5mΩ | |||
4 | Standard Charge And Discharge | Charge/Discharge Current | 1C/1C | (25±2)°C | |
Cut Off Voltage Of Charge/Discharge | 3.65V/2.5V | ||||
5 | Maximum Charge/Discharge Current | Continuous Charge/Discharge | 1C/1C | According to continuous/ pulse charge and discharge ammeters | |
Pulse Charge/Discharge(30s) | 3C/3C | ||||
6 | Recommended Scope Of SOC | 10%~90% | N.A | ||
7 | Suhu Pengisian | 0°C~55°C | According to continuous/ pulse charge and discharge ammeters | ||
8 | Suhu Pengosongan | -20°C~55°C | |||
9 | Suhu Penyimpanan | Short Term ( Within 1 month) | -20 ° C ~ 45 ° C |
N.A | |
Long Term ( Within 1 year) | 0 ° C ~ 35 ° C | ||||
10 | Storage Humidity Range | <95% | |||
11 | Self-discharge rate per month | ≤3%/month | Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC | ||
12 |
Dimensi | Lebar | 130.3±0.5mm |
Refer to Appendix ǀ | |
13 | Thickness( 30% SOC) | 36,7 ± 0,5mm | |||
14 | High( Total) | 200,5 ± 0,5mm | |||
15 | High( Subject) | 195,5 ± 0,5 mm | |||
16 | Tabs Distance | 67.0 ± 1.0mm | |||
17 | Berat Baterai | 1994±50g |
Attentions
- It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
- Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
- Do not short connect or install the battery with incorrect polarity at any time.
- Do not mix up with cells from different models or manufacturers.
- Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
- Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
- Please wear protective devices such as rubber gloves when operating the battery.
Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
Aplikasi
Pabrik kami

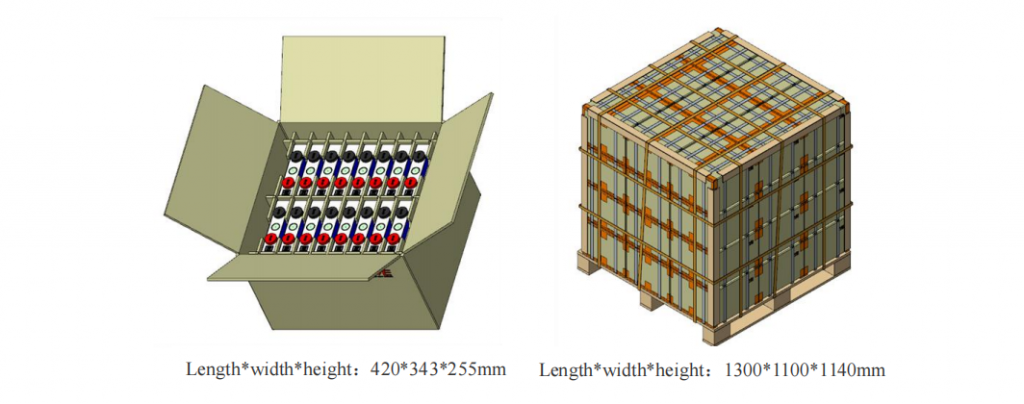

Packing dan Pengiriman
The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.
Penyimpanan
Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ~ 50%SOC.
FAQ
P1. Bisakah saya memesan sampel?
A. Ya, kami menerima pesanan sampel untuk menguji dan memeriksa kualitas.
Q2. Bagaimana dengan lead time?
A. Sampel membutuhkan 3 hari, waktu produksi massal membutuhkan 5-7 minggu, itu tergantung pada jumlah pesanan.
P3. Apakah Anda memiliki batas MOQ?
A.Ya, kami memiliki MOQ untuk produksi massal, itu tergantung pada nomor bagian yang berbeda. 1 ~ 10 pcs pesanan sampel tersedia. MOQ rendah, 1pc untuk pemeriksaan sampel tersedia.
P4. Bagaimana Anda mengirim barang dan berapa lama untuk sampai?
A. Biasanya membutuhkan waktu 5-7 hari untuk tiba. Pengiriman penerbangan dan laut juga opsional.
P5. Bagaimana cara melanjutkan pesanan?
A. Pertama beri tahu kami persyaratan atau aplikasi Anda. Kedua, Kami mengutip sesuai dengan kebutuhan Anda atau saran kami.Ketiga pelanggan mengkonfirmasi sampel dan menempatkan deposit untuk pesanan formal. Keempat Kami mengatur produksi.
P6. Bolehkah saya mencetak logo saya pada produk?
A. Ya. Mohon informasikan kepada kami secara resmi sebelum produksi kami dan konfirmasi desain terlebih dahulu berdasarkan sampel kami.
Q7. Sertifikat apa yang Anda miliki?
A: Kami memiliki CE / FCC / ROHS / UN38.3 / MSDS ... dll.
Q8. Bagaimana dengan garansi?
A: garansi 3 tahun
