Baterai lithium 36V 48V 72V 50ah 80ah 100ah siklus dalam yang disesuaikan untuk mobil golf RV camper

2024-03-15 02:39

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Data sheet	Tegangan Nominal	Kapasitas nominal	Nominal Energy	Dimensi	Bobot
36V  (Support Customized Capacity/Size)
LFP36-50	38.4V	50Ah	1920Wh	522*238*218mm	≈18.5kg
LFP36-60	38.4V	60Ah	2304Wh	522*238*218mm	≈21kg
LFP36-80	38.4V	80Ah	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	38.4V	100Ah	3840Wh	522*238*218mm	≈31kg
48V  (Support Customized Capacity/Size)
LFP48-50	51.2V	50Ah	2560Wh	522*238*218mm	≈25kg
LFP48-60	51.2V	60Ah	3072Wh	522*238*218mm	≈31kg
LFP48-80	51.2V	80Ah	4096Wh	522*238*218mm	≈32.5kg

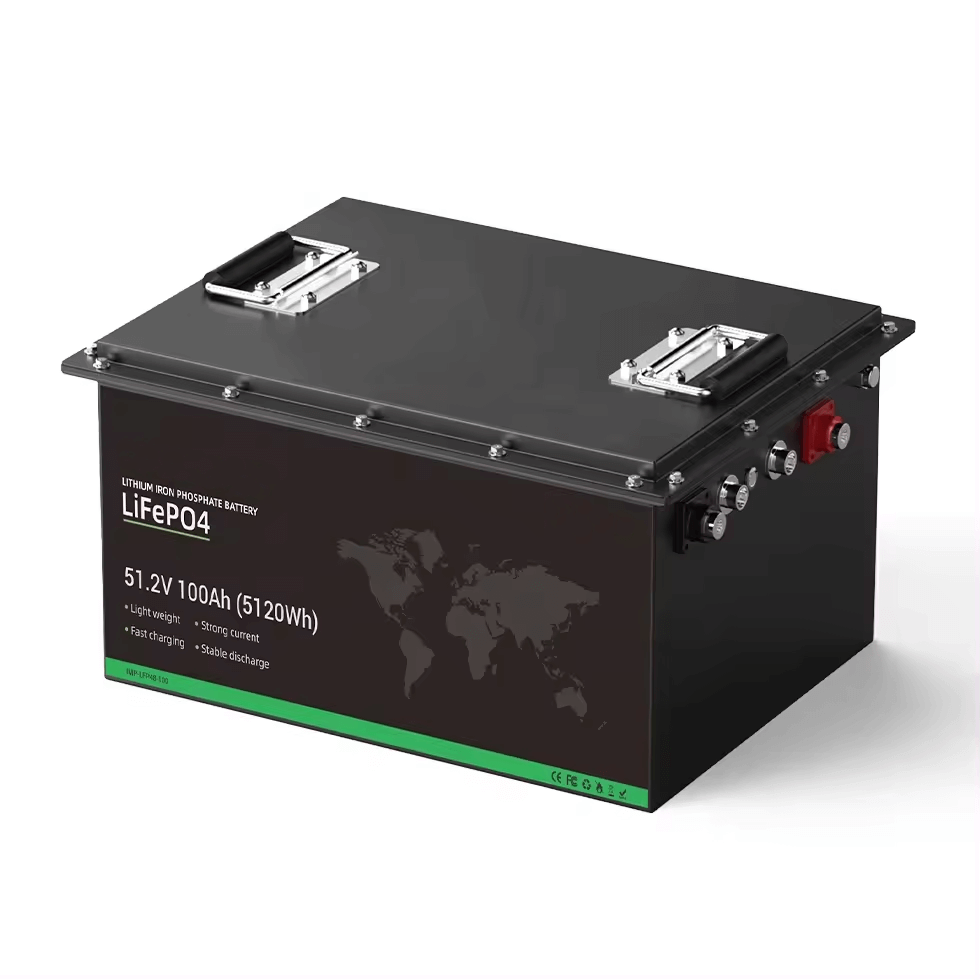

LFP48-100	51.2V	100Ah	5120Wh	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76.8V	50Ah	3840Wh	470*330*150mm	≈50kg

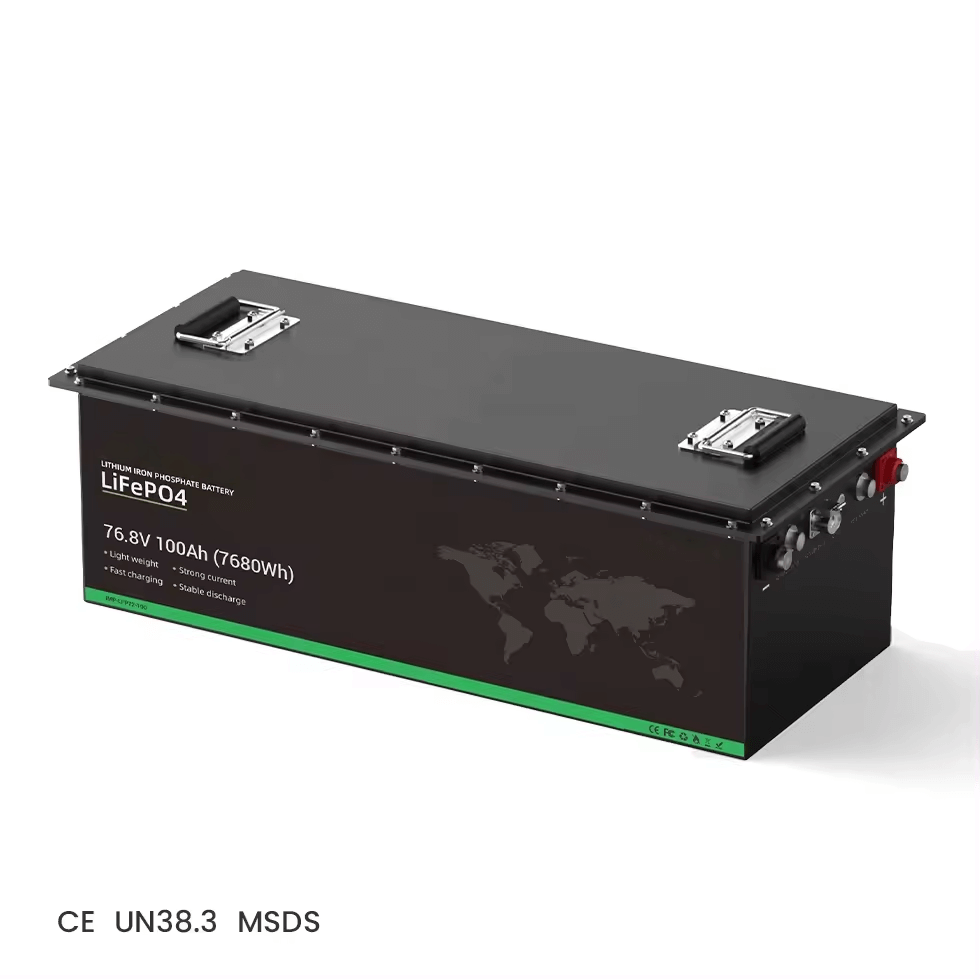

LFP72-100	76.8V	100Ah	7680Wh	730*350*150mm	≈65kg
General
Siklus hidup		≥6000 cycles (80%DOD), at 25°C
Mengisi Suhu		0 ~ 45°C (32 ~ 113°F)
Suhu Discharge		-20 ~ 55°C(-4 ~ 131F)
Suhu Penyimpanan		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Performa

1. Single battery operation
2. Little or no voltage drop
3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

1. No acid fumes or spills
2. Reduce use of electricity
3. Less waste
4. 99% recyclable

Aplikasi

Pabrik kami



Pengiriman dan Pengepakan

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Untuk pesanan besar, kirim melalui AIR atau OCEAN.

FAQ

T: Apakah Anda perusahaan dagang atau pabrikan?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

T: Dapatkah saya memiliki sampel untuk diuji? Dan apa lead time untuk pesanan sampel?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

T: Apakah Anda menerima OEM / ODM?
A: Yes,it is available.We have OEM group to design battery case.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A: YA, App memungkinkan Anda untuk membaca tegangan masing-masing setiap saat.

T: Apakah Anda baterai kapasitas nyata?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

T: Sertifikat apa yang Anda miliki?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

T: Apakah Anda memiliki MOQ?
J: Tidak terbatas. Pesanan kecil juga diterima. Lebih banyak kuantitas memiliki harga yang lebih baik, kami akan memeriksa harga terbaik untuk Anda.

T: Apa jangka waktu pembayaran Anda?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Menggunakan pengisi daya lithium untuk membangunkan baterai. Pengisi daya lithium membangunkan baterai secara otomatis.
