Spesifikasi
Model | AIN51105W | AIN51105S | AIN5165S | AIN51150S | AIN76105S |
Tegangan Nominal | 51.2V | 51.2V | 51.2V | 51.2V | 76.8V |
Kapasitas nominal | 105Ah | 105Ah | 65Ah | 150Ah | 105Ah |
Rated Energy | 5370Wh | 5370Wh | 3320Wh | 7680Wh | 5370Wh |
Maximum Charge Voltage | 58.4V | 58.4V | 58.4V | 58.4V | 87.6V |
Arus Pengisian Maksimum | 100A | 100A | 60A | 150A | 100A |
Arus Debit Kontinyu Maksimum | 150A | 150A | 130A | 200A | 200A |
Maximum Peak Discharge Current (30 seconds) | 300A | 300A | 250A | 300A | 300A |
Discharge Cut-off Voltage | 43.2V | 43.2V | 43.2V | 43.2V | 43.2V |
Driving Mileage | 65-80km | 65-80km | 40-60km | 90-120km | 100-130km |
Mengisi Suhu | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ |
Suhu Discharge | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Cycle Life (25℃, 0.5C, 100% DOD) | >6000 | >6000 | >6000 | >6000 | >6000 |
Terminals | M8 Nut | M8 Nut | M8 Nut | M8 Nut | M8 Nut |
Tingkat Perlindungan | IP67 | IP65 | IP65 | IP65 | IP65 |
Dimensi (mm) | 547*334*245 | 457*298*253 | 465*243*228 | 675*325*260 | 674*338*275 |
Bobot | 48.3kg | 49kg | 32kg | 71kg | 72.8kg |
Protokol komunikasi | BISA/RS485 | RS485 | RS485 | BISA/RS485 | BISA/RS485 |
Fitur Utama
1, PET is able to bear 850kg, avoid bulging
2, CCS vehicle-grade craft,integrated wires

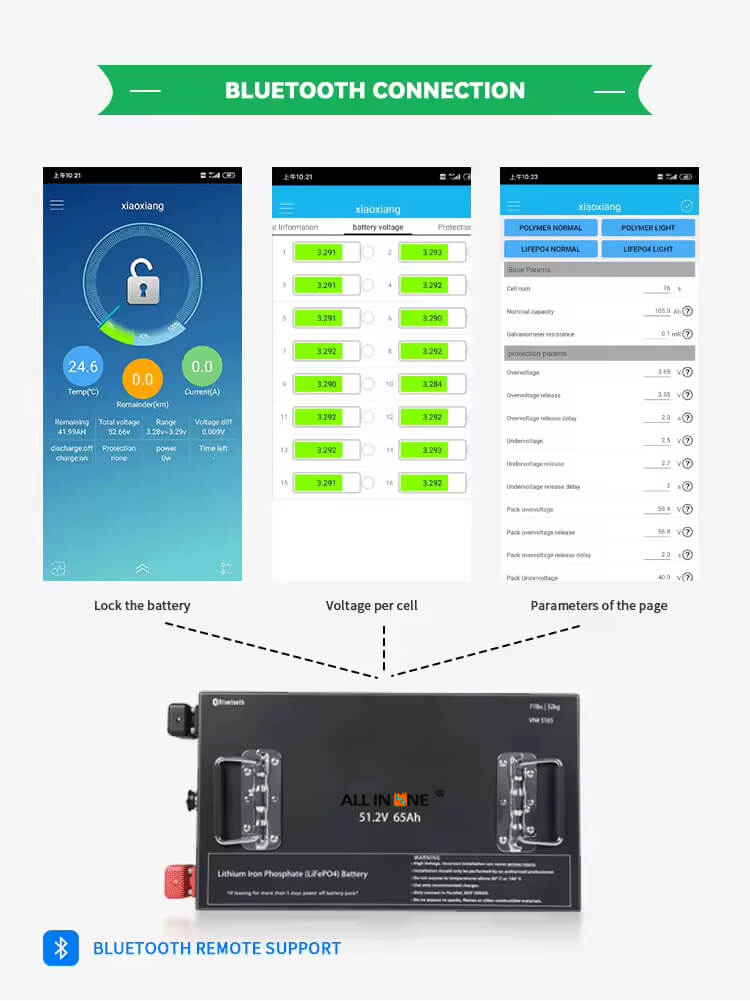

3, Support RS485/CAN/Bluetooth etc
4, 3-4mm metal plates at both side
5, Reserve 1mm width for potential bulging
6, Distributed sampling system to solve sampling impedance problem.
Kami berjanji
1. Semua produk akan diuji 100% sebelum pengiriman untuk memastikan bahwa produk tidak memiliki masalah kualitas.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.
Aplikasi
> Uninterruptible power system > Grid load shifters > Electric Golf Car > Electric vehicles
> Electric motorcycles> Electric forklifts > Electric boats, etc.> Wind-Solar energy system
> Solar street lights > Off-grid energy storage > Household energy storage
> Telecom backup system > Mobile base stations> Emergency backup energy sources
Pabrik kami
Packing dan Pengiriman
FAQ
Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.
Q2: Apakah Anda menyediakan layanan purna jual?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.
Q3 Apa keuntungan perusahaan Anda?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service
Q4: Apakah Anda menerima OEM / ODM?
A4: Yes, it is available.
Q5: What is your lead time for mass production?
A5: Secara umum, sekitar 25-30 hari tergantung pada item yang berbeda setelah mendapatkan uang muka dan konfirmasi tentang sampel.
Q6:Are your battery real capacity?
A6: Semua sel baterai kami dengan Grade A, kapasitas 100% baru dan nyata.
Q7: Apakah Anda pabrik atau perusahaan dagang?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
T8: Jenis sertifikat apa yang Anda miliki?
A8: Kami dapat menyediakan CE, ROHS, FCC, IEC62133, MSDS, UN38.3 jika jumlah pesanan Anda besar.
